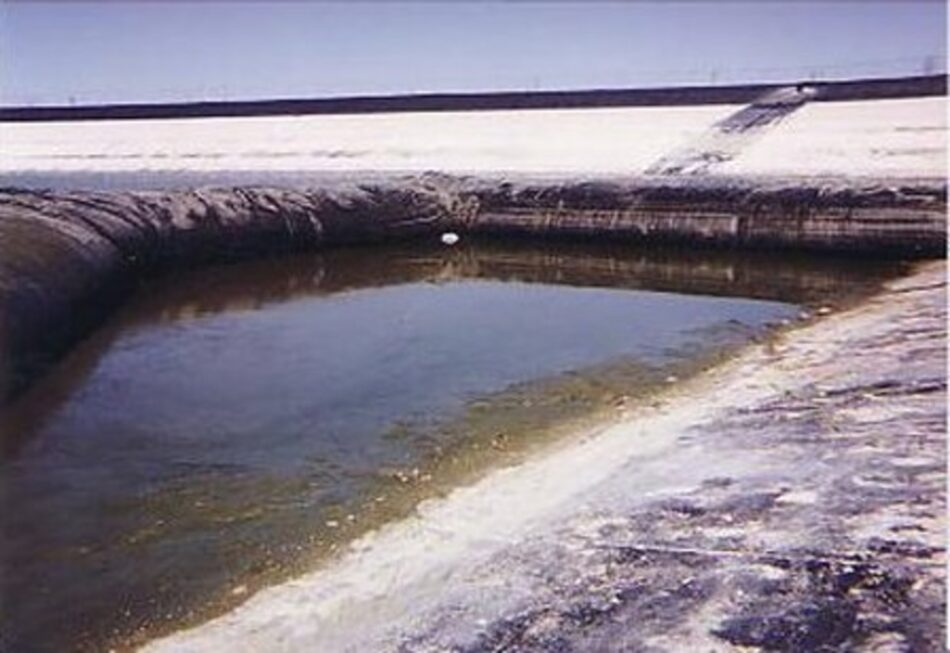

1.) This pond had a leak in the liner. A 4ft tall 9ft wide (full) 100ft long single closed end (SCE) AquaDam was installed to isolate and de-water the work area.

2.) The fill-tubes of the AquaDam are extended well up the bank to ensure that the AquaDam can be inflated to its full height. The starting point (open end) and fill-tubes of a SCE AquaDam must be elevated higher than the full height of dam along its given path. An AquaDam will only reach its full height at the lowest elevation along its given path.

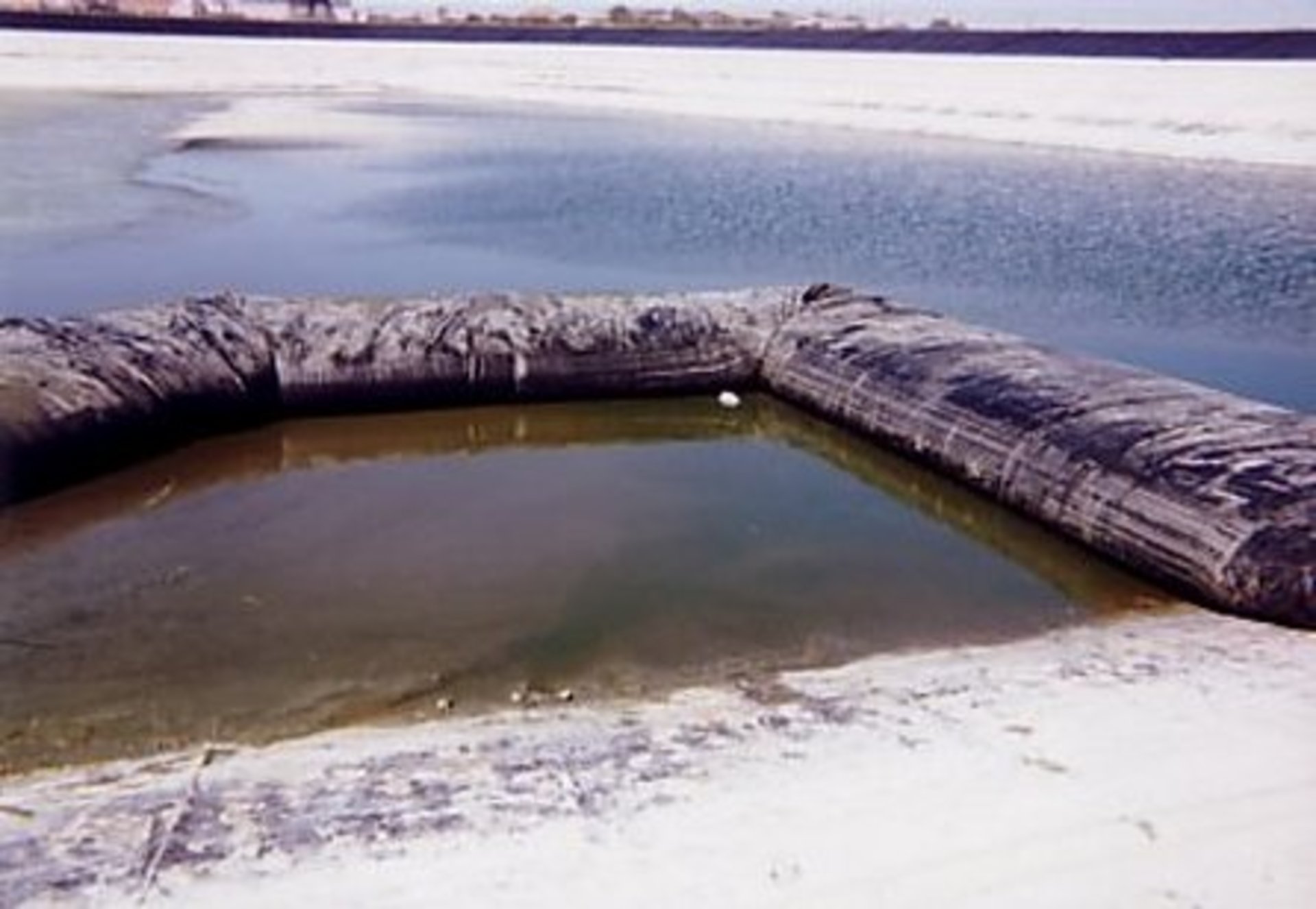

3.) The work area is isolated and now needs to be de-watered.

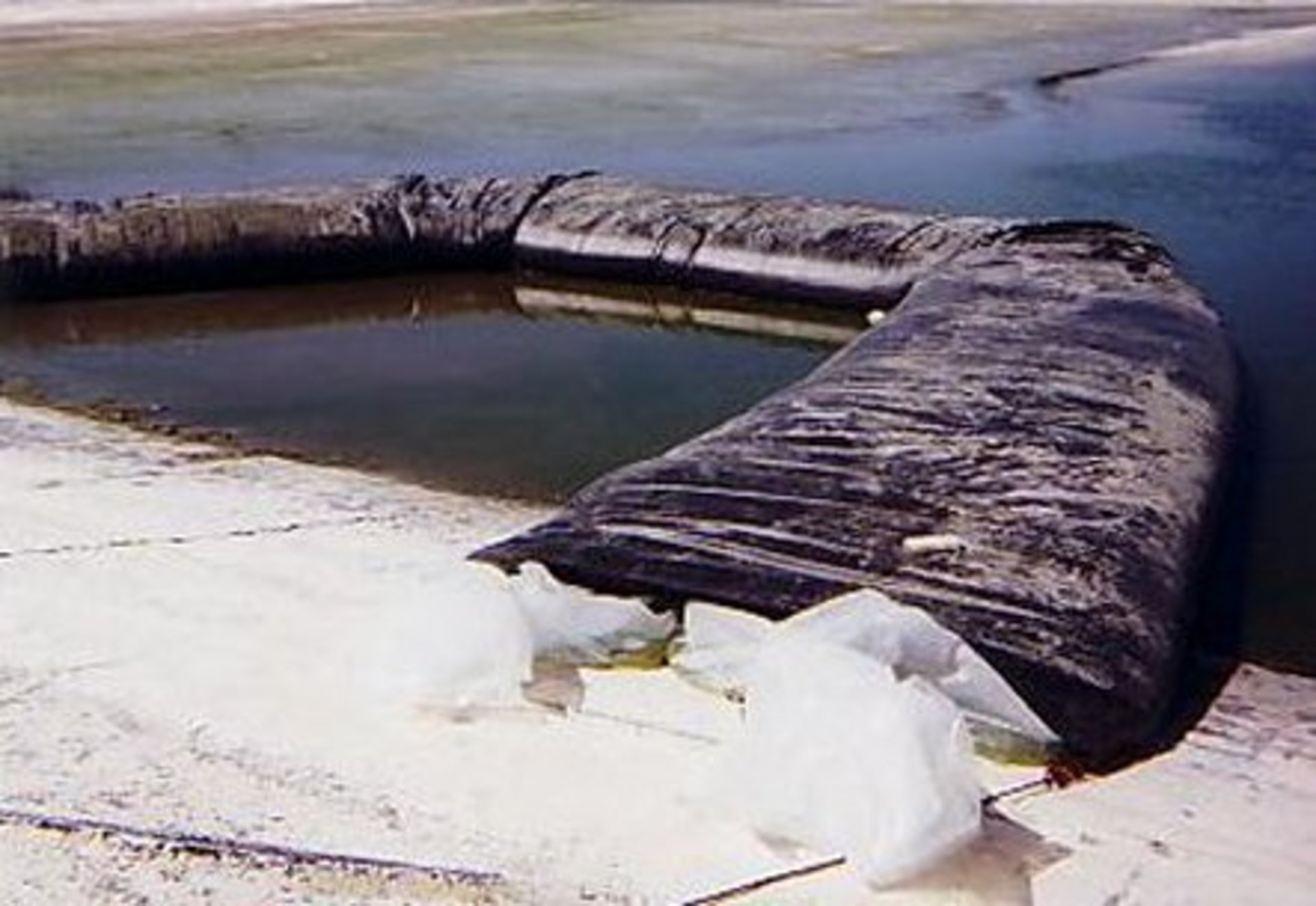

4.) The 4ft tall SCE AquaDam was installed into a horseshoe/”U” shape configuration.

5.) Great job AquaDam!
